Saxlund were chosen by Anglian Water to design, manufacture, and install a dewatered sludge cake truck loading silo and infeed chain conveyor for the Tilbury Sewage Treatment Works.

Case Study

Tilbury STW

Storage Silo with Sliding Frame Discharge

Saxlund were chosen by Anglian Water to design, manufacture, and install a dewatered sludge cake truck loading silo for the Tilbury Sewage Treatment Works.

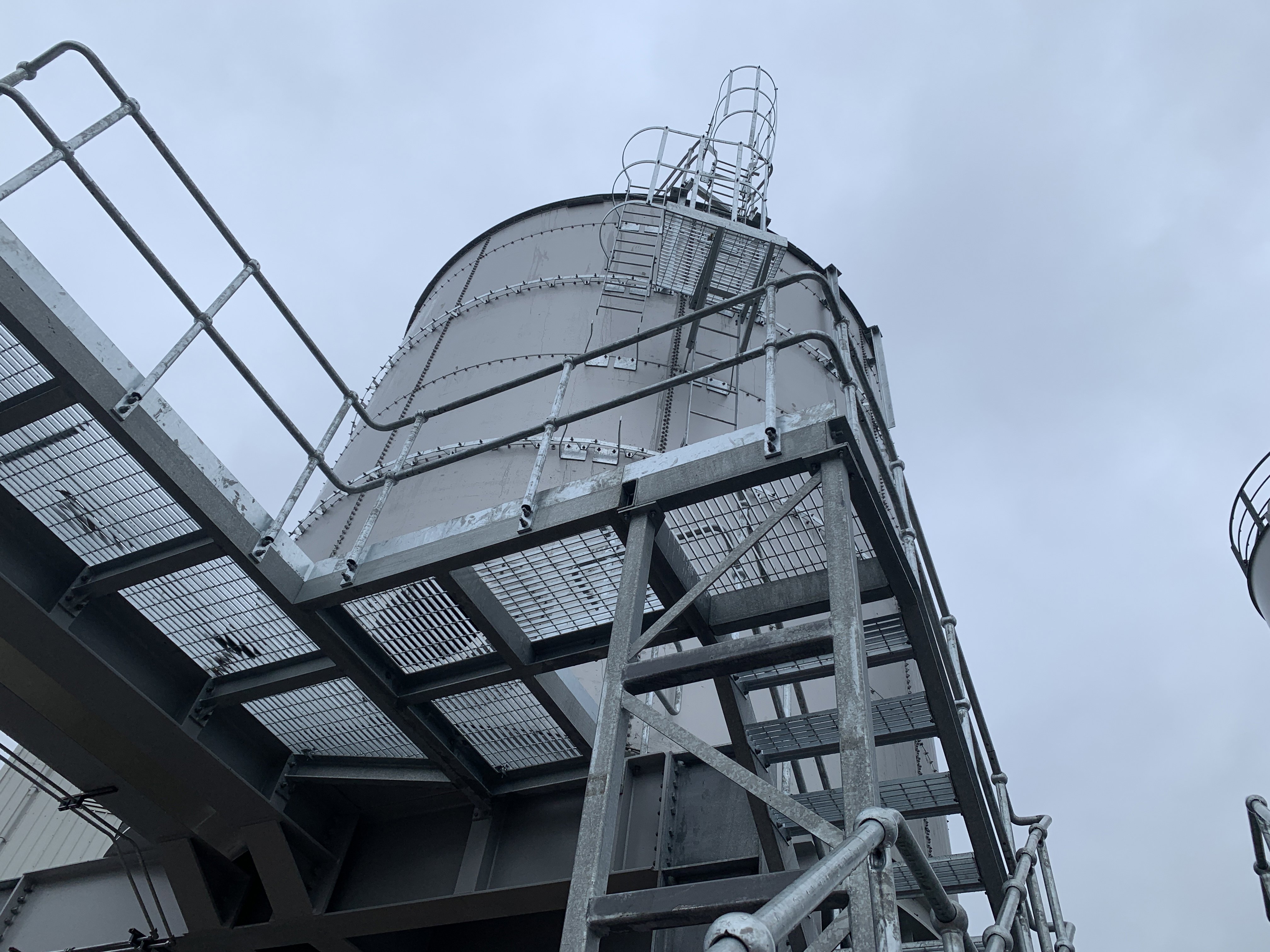

The silo shell was manufactured as bolted stainless steel panels, which reduces the carbon footprint by being 100% recyclable.

The truck loading silo is loaded by cake pumped into the side of the silo, maximising the storage volume. The silo is discharged by the Sliding Frame which is fitted onto the baseplate of the flat bottomed silo supported high above the ground.

The Saxlund Sliding Frame reciprocates across the silo floor promoting mass flow and discharges the sludge cake into a screw conveyor. The screw conveyor conveys the material towards the outlet and discharges through a hydraulically operated slide gate valve and into the truck waiting below.

Saxlund supplied and installed the MCC/PLC to control the unloading of the silo into the trucks, and the site cabling for the project.

Technical Data

Client

Anglian Water

Year

2019

Material

Dewatered Sludge Cake

Dry Solids Content

20 - 30%

Discharge Rate

Up to 120m3/hr into trucks

Equipment

Truck Loading Storage Silo

Silo Diameter

6800mm

Silo Shell Height

8700mm

Storage Volume

304m3

Sliding Frame

Type

GL-6800-SX

Discharge Screw

Type

DM-630

Discharge Rate

Up to 120m3/hr

MCC/PLC

Site cabling for Saxlund equipment
