A-Frame large scale storage systems
When the project requires a large volume of biomass storage, the most cost-effective method to achieve this is to use an A-Frame storage system.

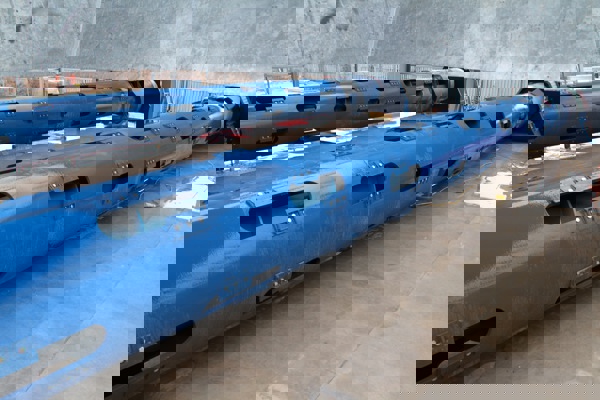

Saxlund TubeFeeder® biomass reclaimer solution
With the Saxlund TubeFeeder® biomass reclaimer solution we offer a very different method of material reclaim, which beneficially impacts the cost of an A-Frame building.
As the TubeFeeder® does not impart any axial loading on the building due to its design, the construction of an A-Frame to house TubeFeeders® can be designed much more cost effectively. The building can then be designed to any length to achieve the storage volume.
The TubeFeeder ® biomass reclaimer is well suited for processes that require a high level of accuracy; it offers a superior solution for industries that place exacting demands on efficiency and performance of their materials handling processes.
The biomass storage building is filled using either a Tripper Conveyor or reversing shuttle conveyor in the roof of the A-Frame, reclaim can be done by one or more TubeFeeders®. If using two TubeFeeders® biomass reclaimers for redundancy, each TubeFeeder® can be designed to provide 100% of the required capacity for the plant.
Typical Storage Volumes
5000 – 30,000m3 or more per building
Typical Materials
- Virgin Wood Chips
- Recycled Shredded Waste Wood
- Sawdust
